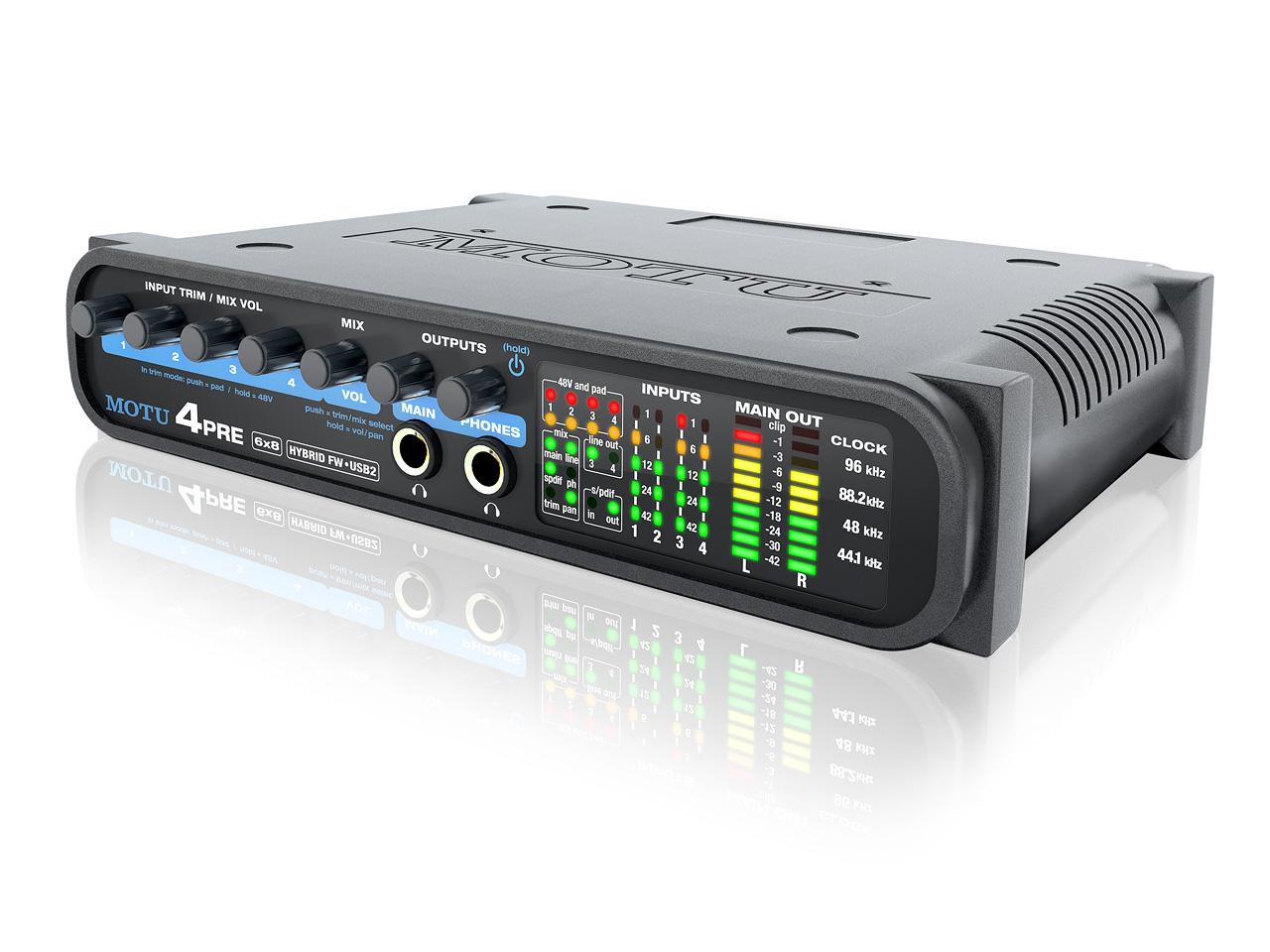

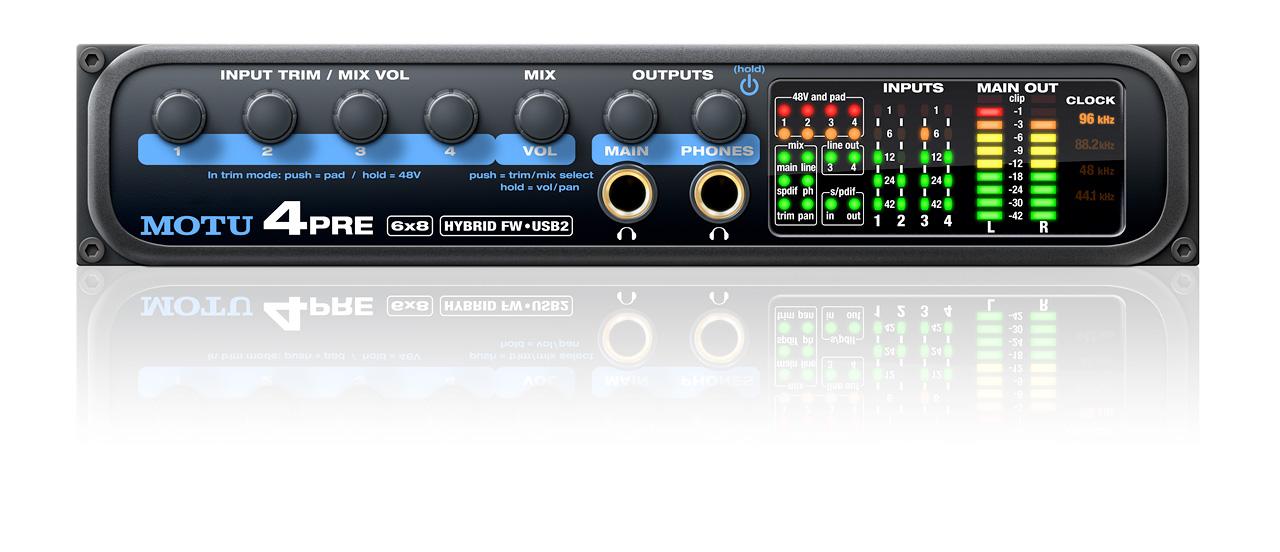

MOTU 4 Pre Hybrid
USB / Firewire Audio Interface
- 6x8 With four microphone preamplifiers
- 24-bit / 96 kHz

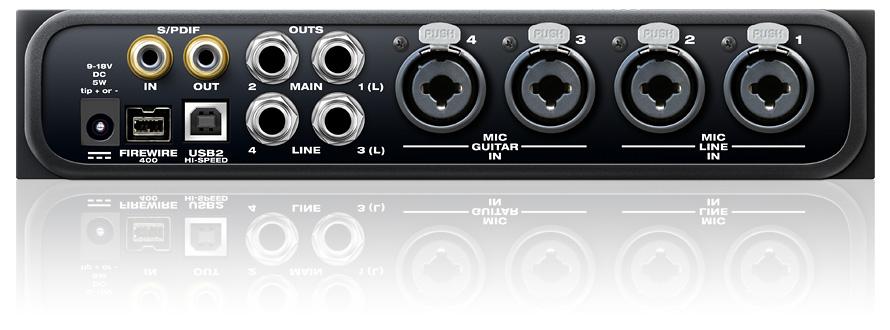

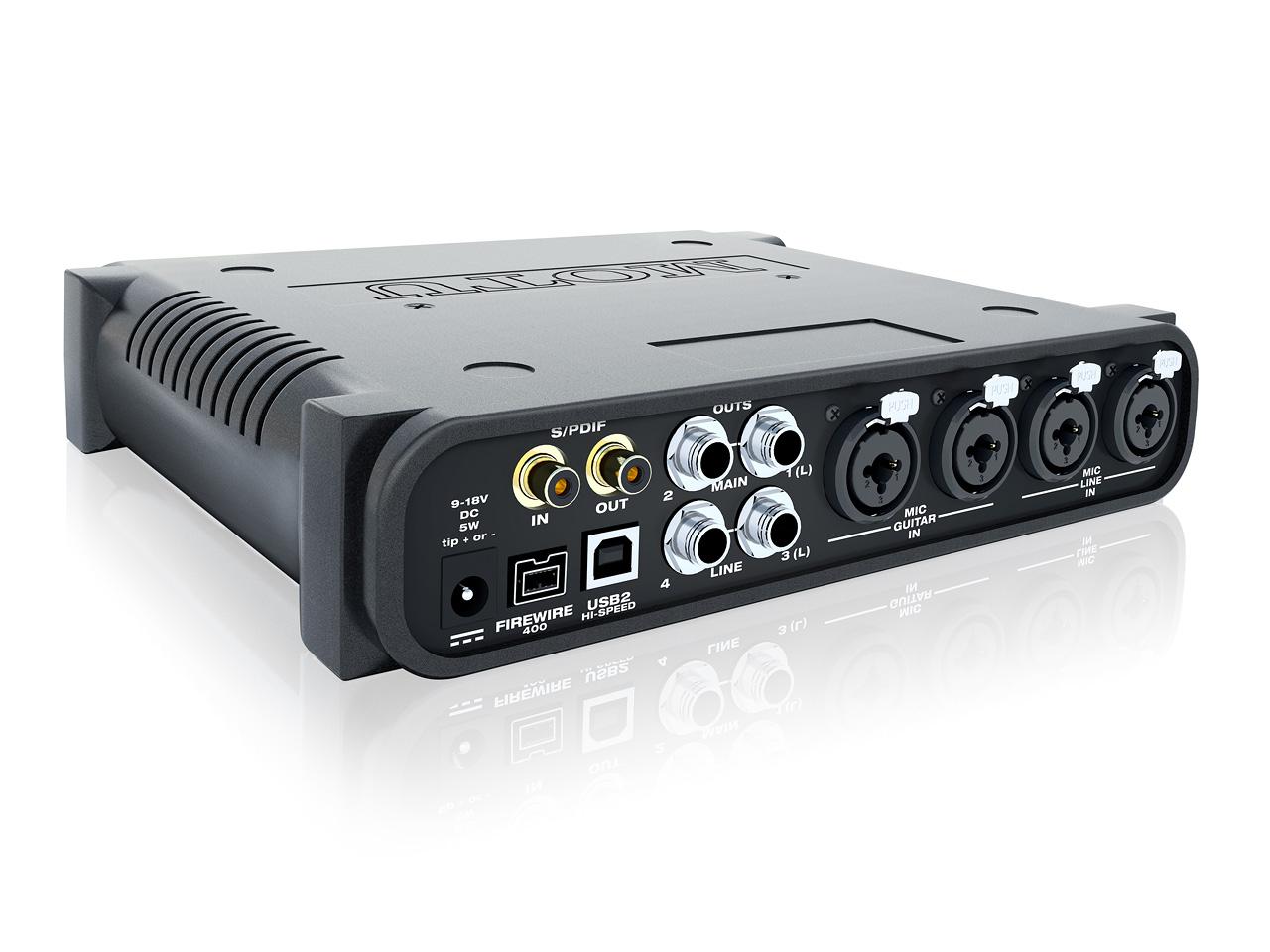

- Inputs: 4x XLR / Jack Combo (Line / Mic)
- 2x Jack 6.3 mm
- 2x Hi-Z instrument
- Outputs: 4 x 6.3 mm jack balanced
- 2x Headphone output with separate control
- S / PDIF input and output coaxial
- Firewire 400 + USB 2.0 connector
- SMPTE Syn In / Out
- 48V Phantom power
- -20 dB pad
- Incl. Power supply
- For Win Vista / 7 / MAC OSX 10.5 or higher
Further Information
| Recording/Playback Channels | 6/8 |
|---|---|
| Number of microphone inputs | 4 |
| Number of Line Inputs | 2 |
| Number of instrument inputs | 2 |
| Number of Line Outs | 4 |
| Headphone Outputs | 2 |
| Phantom power | Yes |
| S/PDIF Connectors | 1 |
| ADAT Connectors | 0 |
| AES/EBU Connectors | 0 |
| MADI Connectors | 0 |
| Ethernet | 0 |
| Misc. Connectors | No |
| MIDI Interface | No |
| Word Clock | No |
| max. Samplerate in kHz | 96 kHz |
| Max. Resolution in bit | 24 bit |
| Bus-Powered | Yes |
| Incl. power supply | Yes |
| Firewire Version | 400 |
| Width in mm | 241 mm |
| Depth in mm | 178 mm |
| Height in mm | 45 mm |
