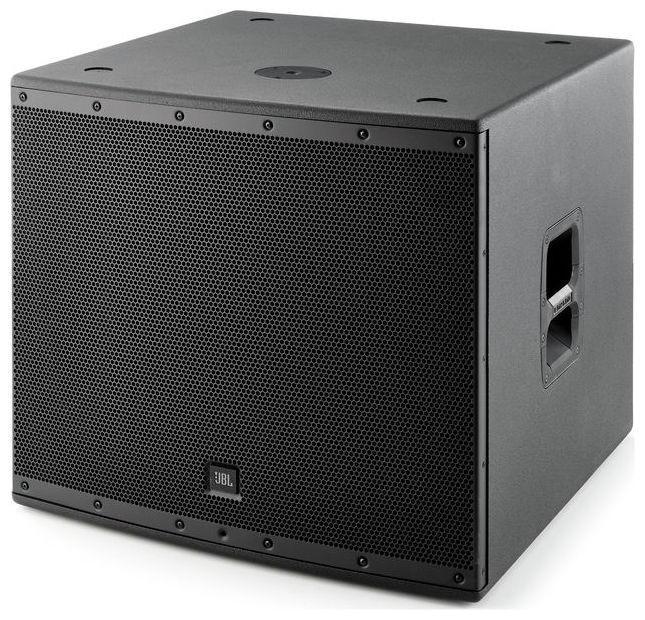

Bajo (subwoofer) Activo JBL EON 618

FEATURES

JBL Premium Transducers
1000 W highly efficient Class-D amplification
Maximum SPL Output: 134dB
System Type: Self powered 18” Subwoofer
Frequency Range (-10dB): 31Hz - 150Hz
Frequency Response (- 3dB): 42.5Hz - 150Hz
Bluetooth Control
• 3 Parametric EQs + Hi & Lo Shelf • Gain and Delay • Save and Recall settings • Polarity Inversion
JBL Engineered Crossover Presets
• 80 Hz • 100 Hz • 120 Hz • EON
M20 Pole Cup
Rugged, stage-ready Duraflex enclosure

SPECIFICATIONS

	System Type	Self powered 18” Subwoofer
	Maximum SPL Output	134 dB
	Frequency Range (-10 dB)	31Hz –150Hz
	Frequency Response (-3 dB)	42.5Hz – 150Hz
	System Power Rating	1000W Peak, 500W Continuous
	Input Impedance	22k (balanced)
	Line Input Gain	0 to 36 dBu
	Line	+14dBu

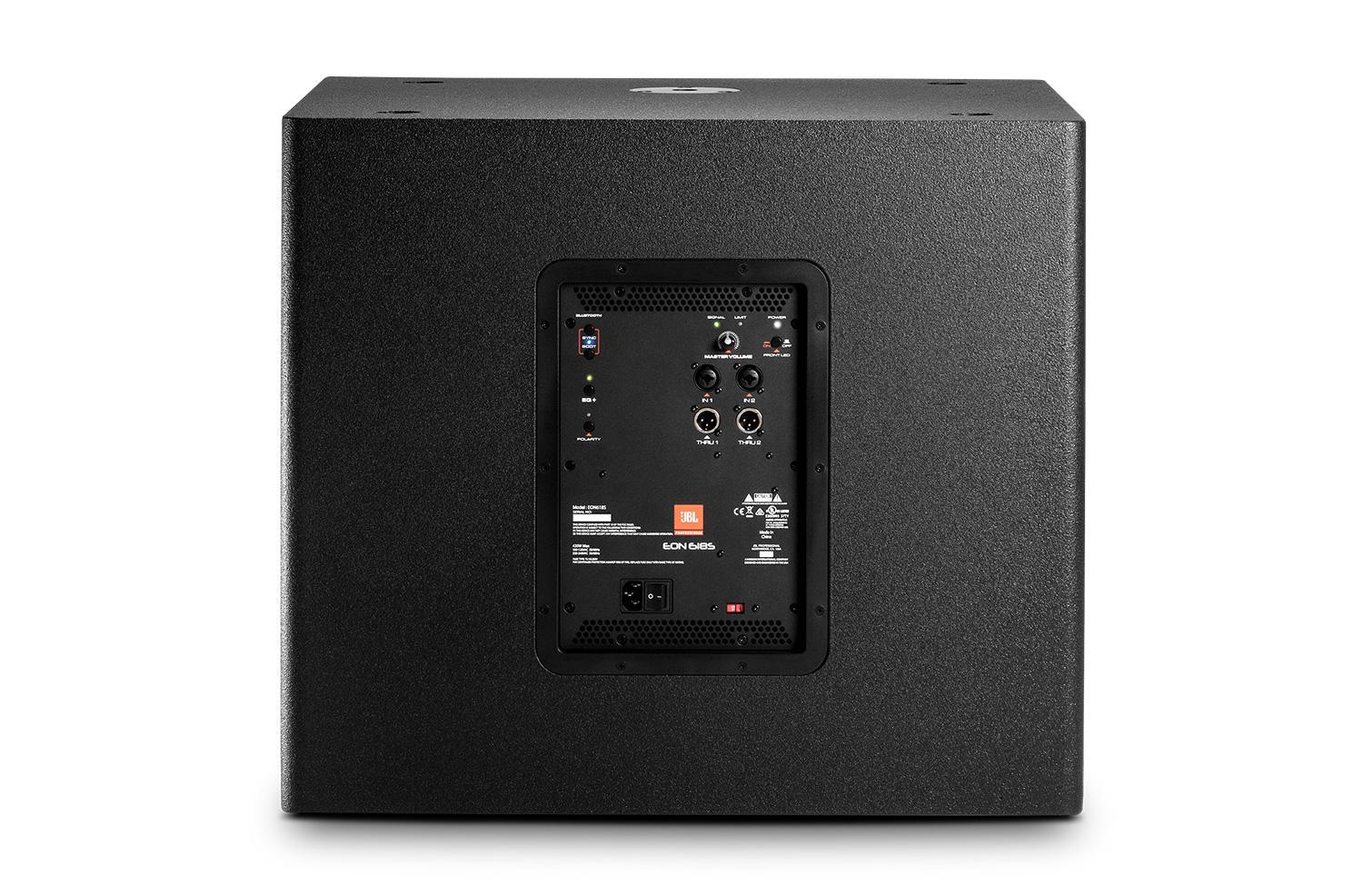

	Connectors	2 x Balanced XLR-1/4” combination inputs; 2 x male XLR loop thru out
	LED Indicators	Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange)
	Cooling	Passive
	AC Power Input	100-120VAC 50/60Hz; 230-240VAC 50/60Hz
	AC Power Consumption (120V~)	1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max)
	LF Driver	1 x JBL 618H 457mm (18”) woofer with 2” voice coil
	Crossover Frequency	Selectable; 80 Hz, 100 hz, or 120 Hz
	Material	Duraflex coated wooden enclosure
	Suspension/Mounting	M20 Threaded Pole Cup
	Handles	2

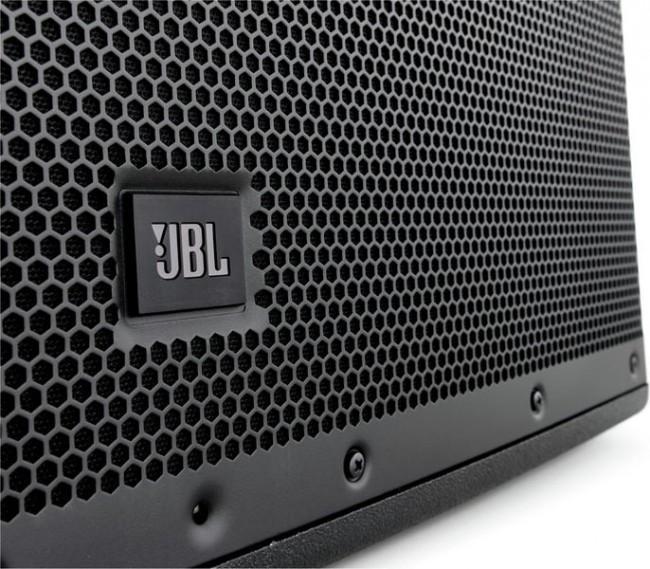

	Grille	Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing
	Dimensions (L x W x H)	582mm x 668mm x 645mm (22.9” x 26.3” x 25.4”)
	Weight	72 lbs (35.5 kg)
	Shipping Weight	91 lbs (41.2 kg)
	Shipping Dimensions (L x W x H)	803mm x 768mm x 631mm (31.6" x 30.2" x 25.1")
